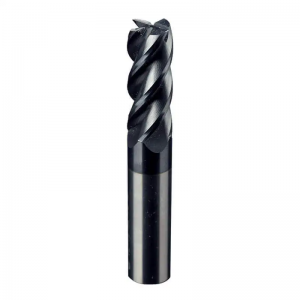

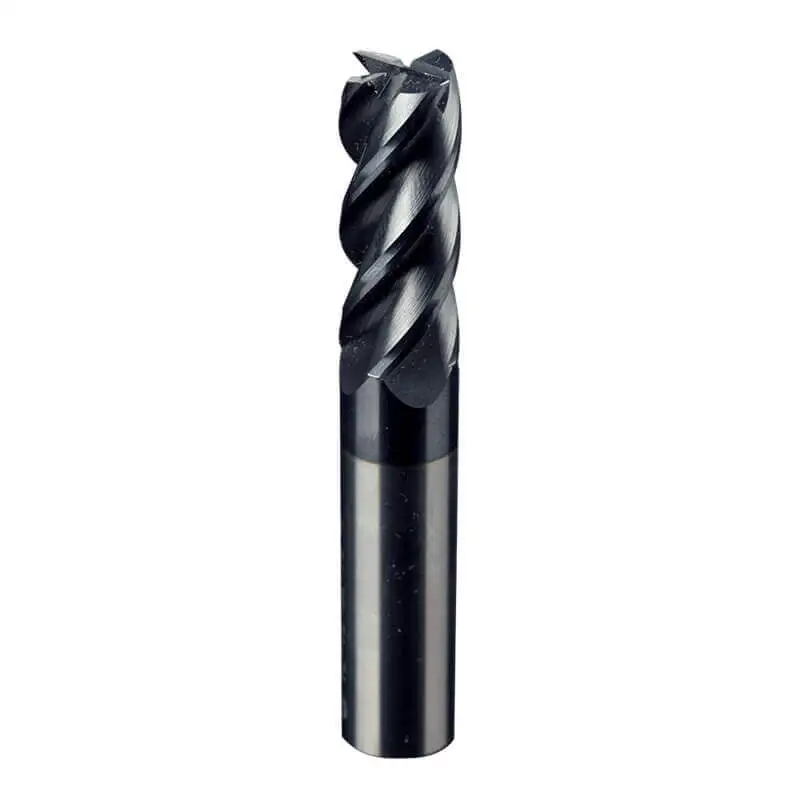

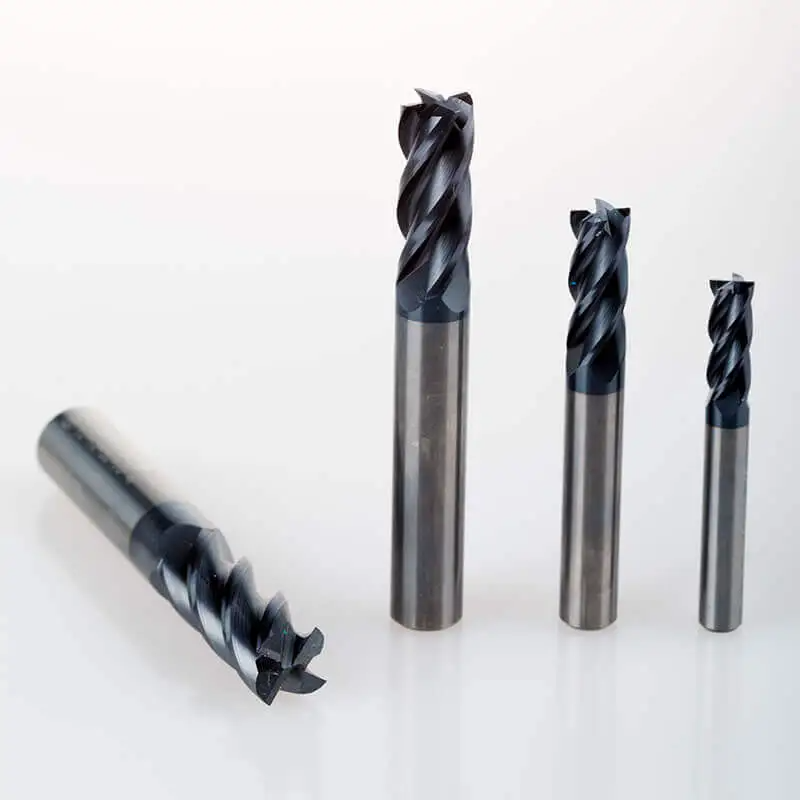

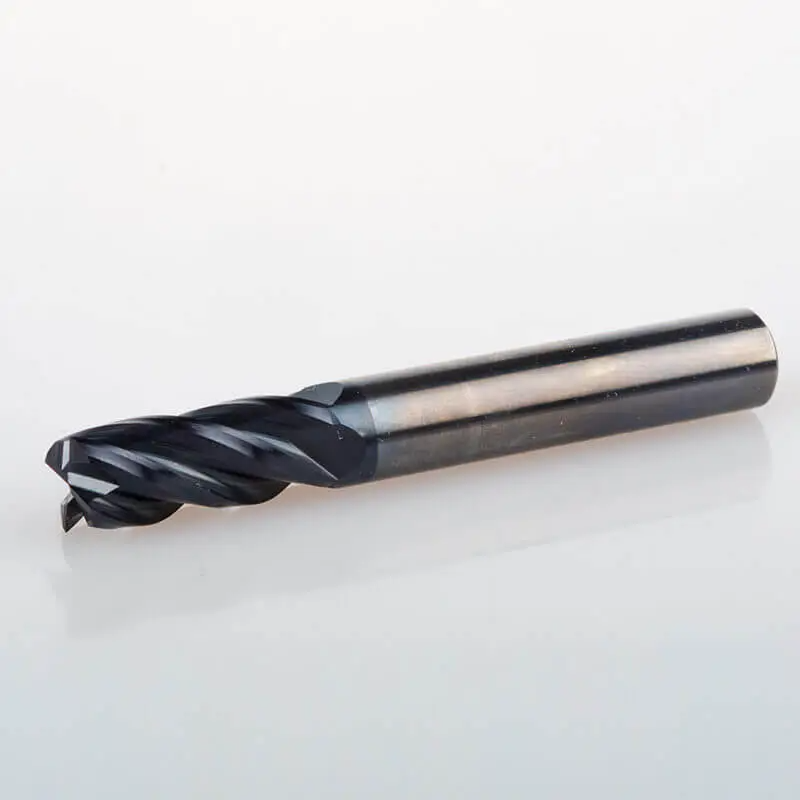

Standard length HRC45 Carbide 4 flute square end mills for below HRC45 steel
Product Information
|
Product Name |
Standard length HRC45 Carbide 4 flute square end mills for below HRC45 steel. |
|
|
Material |
Raw Material: Use YG10X with 10% Co content and 0.8um grain size. |
|
|
Process |
Milled |
|
|
Flute Type |
4Flutes ( 3 Flutes 2flute are Available) | |
|
Size |
Shank diameter: 4-12 mm, Overall length: 50-75 mm |
|
|
Surface Finish |
Bright Finish (AlTiN, Tin, are Available) |
|
|
End type: |
Center cutting |
|
|
Package |

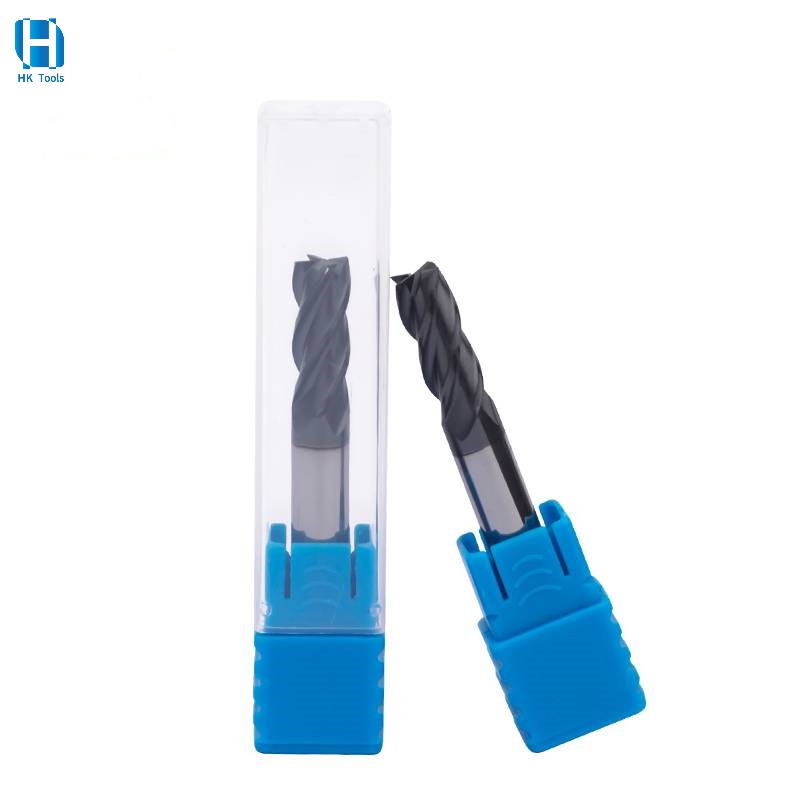

One Piece in One Plastic Calm Shell |
|
|
Features |
1.Allows for both roughing and finishing applications 2.H6shank tolerance for high precision tool holders 3.ALTIN coating for added lubricity,higher speeds and feeds and increase wear resistance4.Special design smooth cutting process,better tool rigidity longer working life |
|

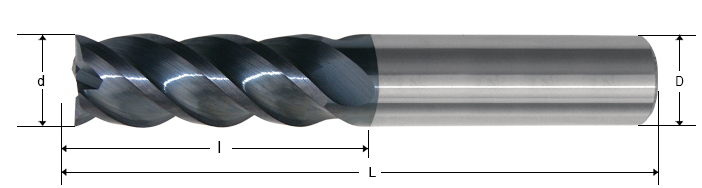

Product Size
|
Diameter d(mm) |
Cutting Length l(mm) |
Shank Diameter d(mm) |
Overall Length L(mm) |
Flutes |
|
3 |
8 |
3 |
50 |
4 |
|
1 |
3 |
4 |
50 |
4 |
|
1.5 |
4 |
4 |
50 |
4 |
|
2 |
6 |
4 |
50 |
4 |
|
2.5 |
7 |
4 |
50 |
4 |
|
3 |
8 |
4 |
50 |
4 |
|
3.5 |
10 |
4 |
50 |
4 |
|
4 |
10 |
4 |
50 |
4 |
|
5 |
13 |
5 |
50 |
4 |
|
2.5 |
7 |
6 |
50 |
4 |
|
3 |
8 |
6 |
50 |
4 |
|
3.5 |
10 |
6 |
50 |
4 |
|
4 |
10 |
6 |
50 |
4 |
|
4.5 |
12 |
6 |
50 |
4 |
|
5 |
13 |
6 |
50 |
4 |
|
6 |
15 |
6 |
50 |
4 |
|
7 |
18 |
8 |
60 |
4 |
|
8 |
20 |
8 |
60 |
4 |
|
9 |
23 |
10 |
75 |
4 |
|
10 |
25 |
10 |
75 |
4 |
|
11 |
28 |
12 |
75 |
4 |
|
12 |
30 |
12 |
75 |
4 |
|
14 |
35 |
14 |
80 |
4 |
|
14 |
45 |
14 |
100 |
4 |
|
16 |
45 |
16 |
100 |
4 |
|
18 |
45 |
18 |
100 |
4 |
|
20 |
45 |
20 |
100 |
4 |

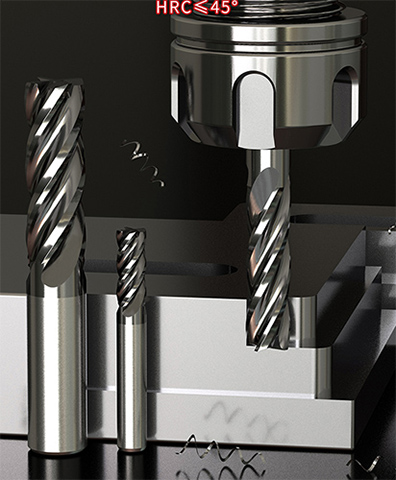

Application Material
Suitable for carbon structural steel, mold steel, alloy steel and below HRC45 steel
|
Application Material |
||||||
|
Carbon Steel |
Alloy Steel |
Cast Iron |
Aluminum Alloy |
Copper Alloy |
Stainless Steel |
Hardened Steel |
|
Yes |
Yes |
Yes |
|
|
|
HRC≤45 |
