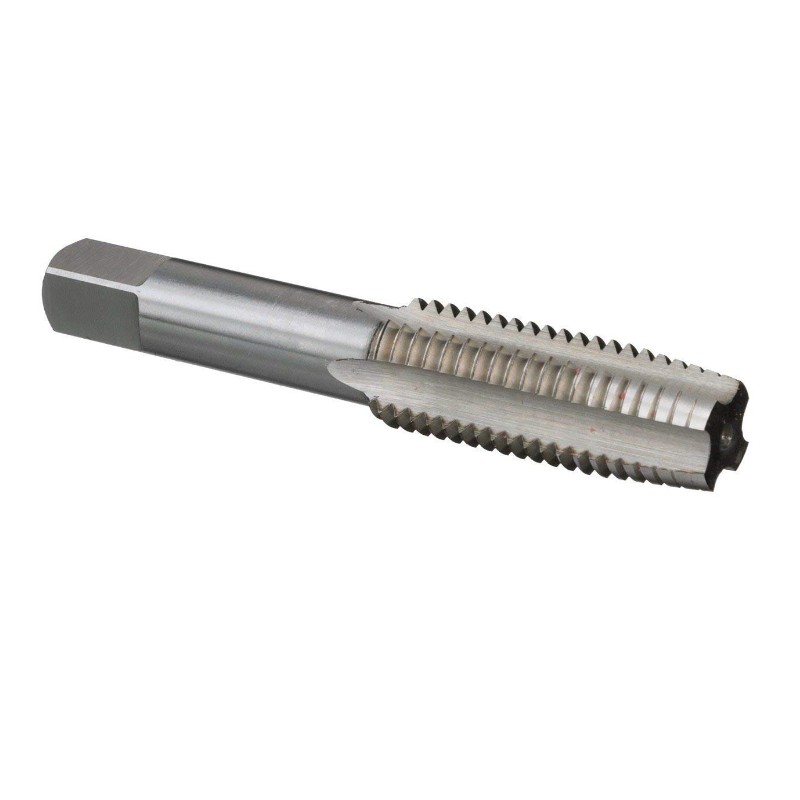

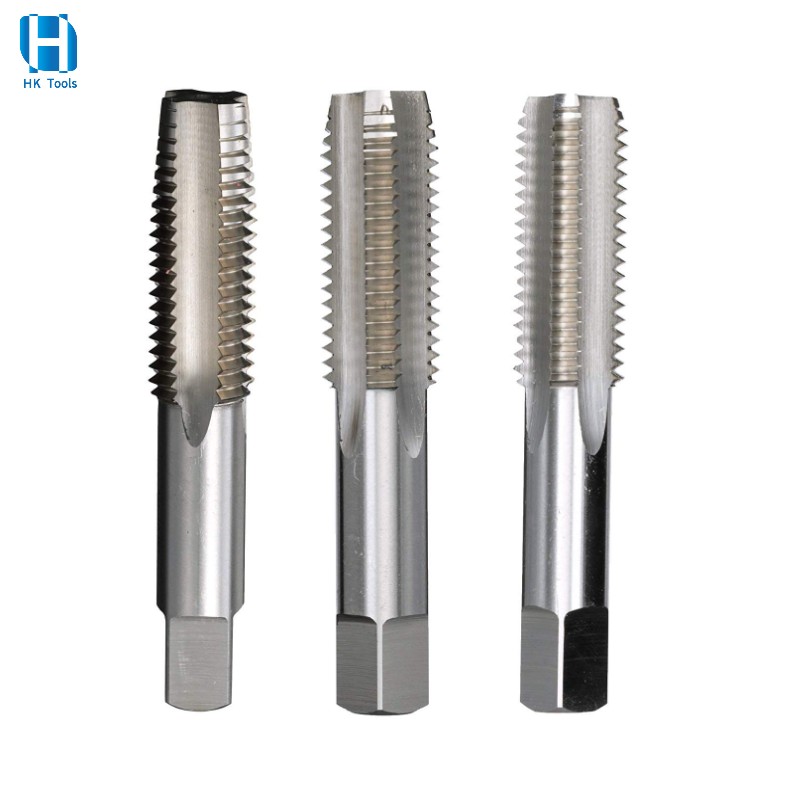

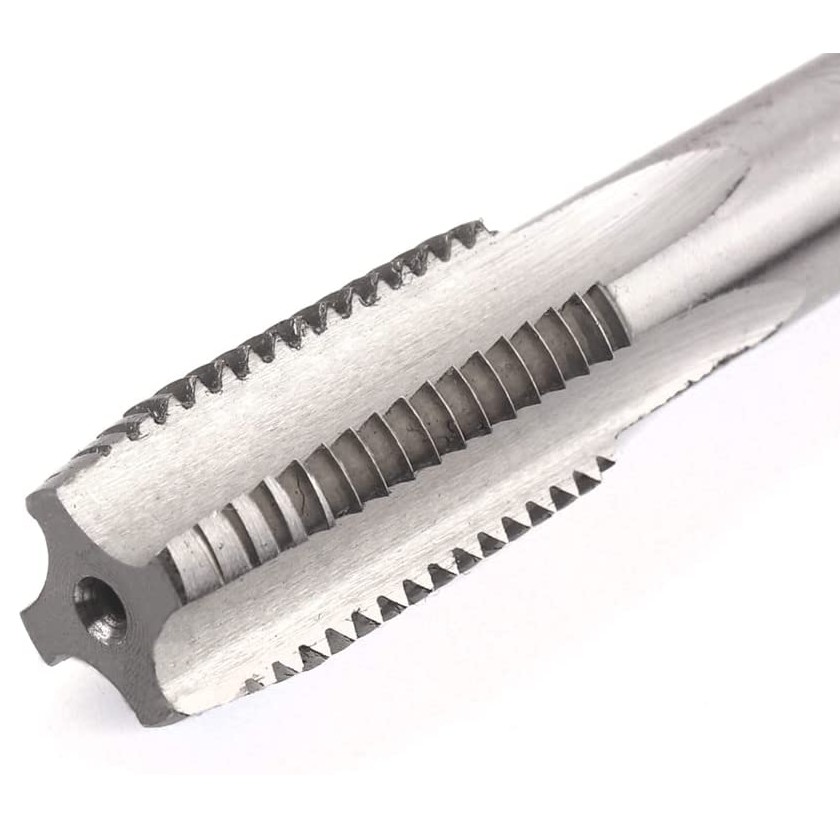

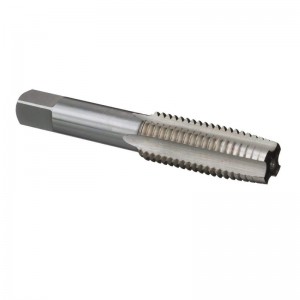

Straight flute hand use thread cutting taps for Tapping Metal Threads
Product Information
| Product Name | Straight flute hand use thread cutting taps for Tapping Metal Threads |  |
| Flute Type | Straight Flute (Spiral Flute, Spiral Point are Available) | |
| Standard | Din352 (ANSI Standard is Available) | |
| Size | M1-M100 | |
| Thread Type | M (MF, UNC, UNF, BSW, BSP are Available) | |
| Material | HSS (Alloy Steel is Available) | |
| Process | Fully Ground | |
| Shank Type | Square Shank/ | |
| Surface Finish | Black Finish (Tin-Coated, other High Performance Coating are Available) | |
| Package | 10/5 Piece in One PVC Pouch or in Plastic Box | |
| Features | All-in-one features may reduce the number of tools required.It is very suitable for metal materials such as cast iron that will produce short chips.
According to your needs, it can be transitioned from machine to tap wrench. |
|

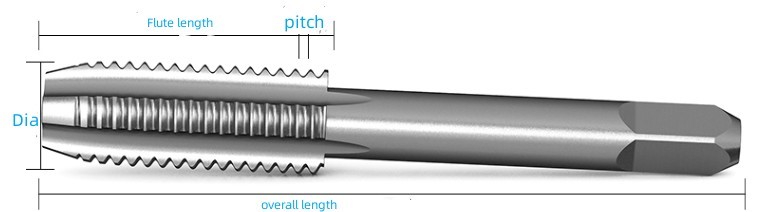

Product Size
|
Metric |
Diameter(mm) |
Pitch(mm) |
|
M3 |
3 |
0.5 |
|
M4 |
4 |
0.7 |
|
M5 |
5 |
0.8 |
|
M6 |
6 |
1.0 |
|
M7 |
7 |
|
|
M8 |
8 |
1.25 |
|
M9 |
9 |
|
|
M10 |
10 |
1.5 |
|
M11 |
11 |
|
|
M12 |
12 |
1.75 |
|
M14 |
14 |
2.0 |
|
M16 |
16 |
|
|
M18 |
18 |
2.5 |
|
M20 |
20 |
|
|
M24 |
24 |
3.0 |
|
M36 |
36 |
4.0 |
|
M48 |
48 |
5.0 |
|
M64 |
64 |
6.0 |

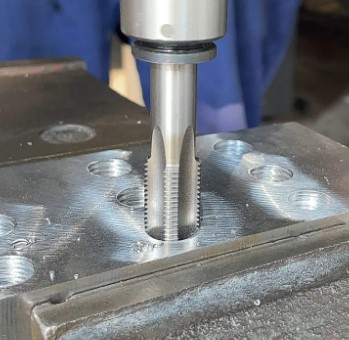

Product Application
DIN352 Hand Use straight flute taps are used to cut cast iron,alloy steel,aluminum,copper,A3steel

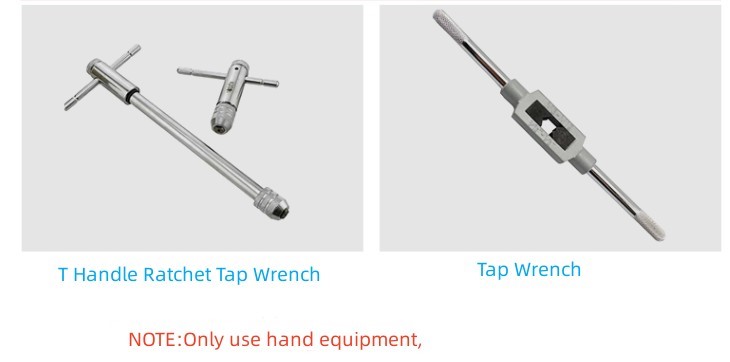

Application Equipment
