Product Name

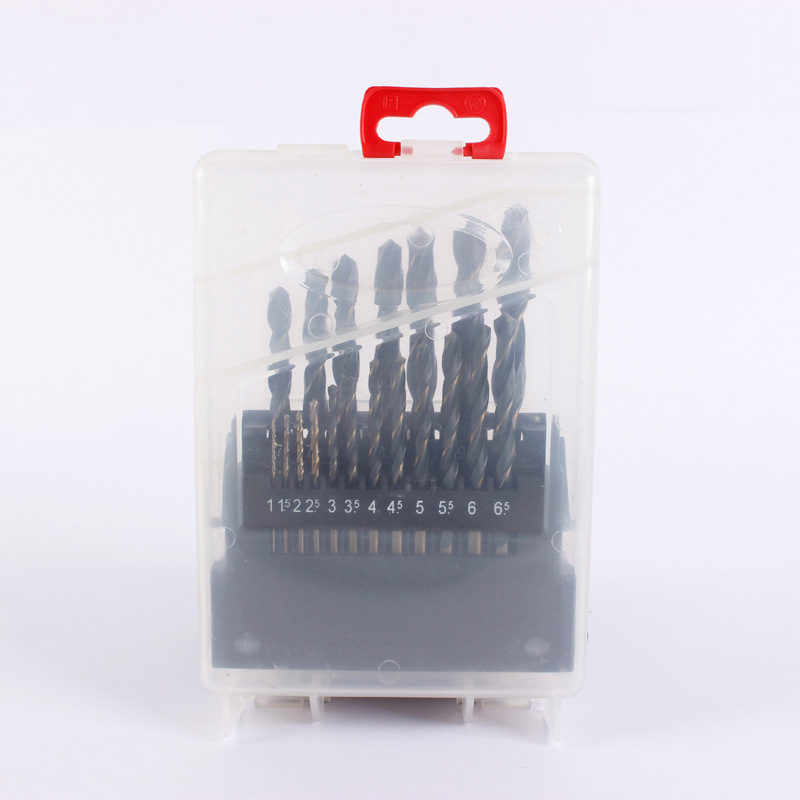

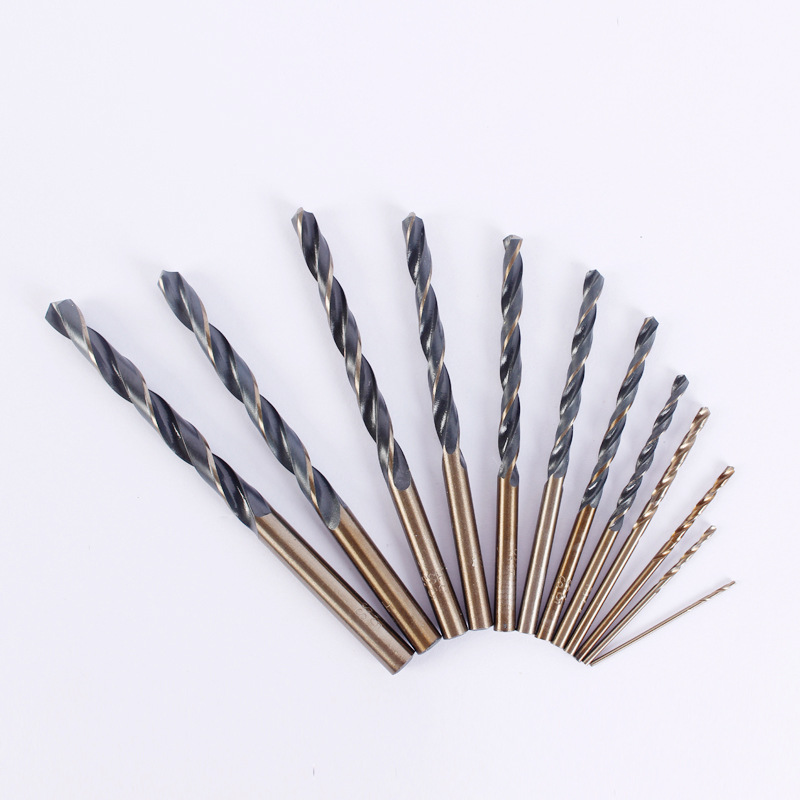

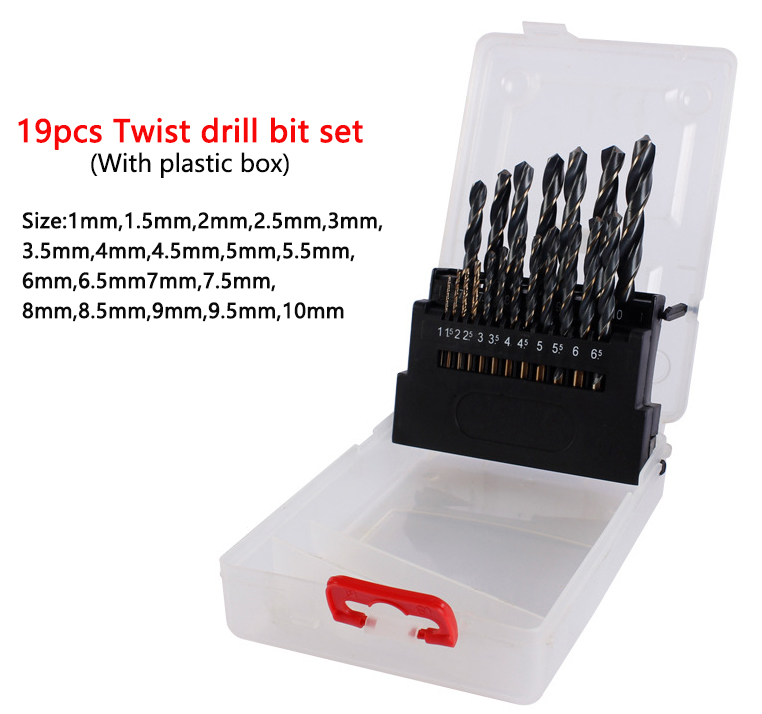

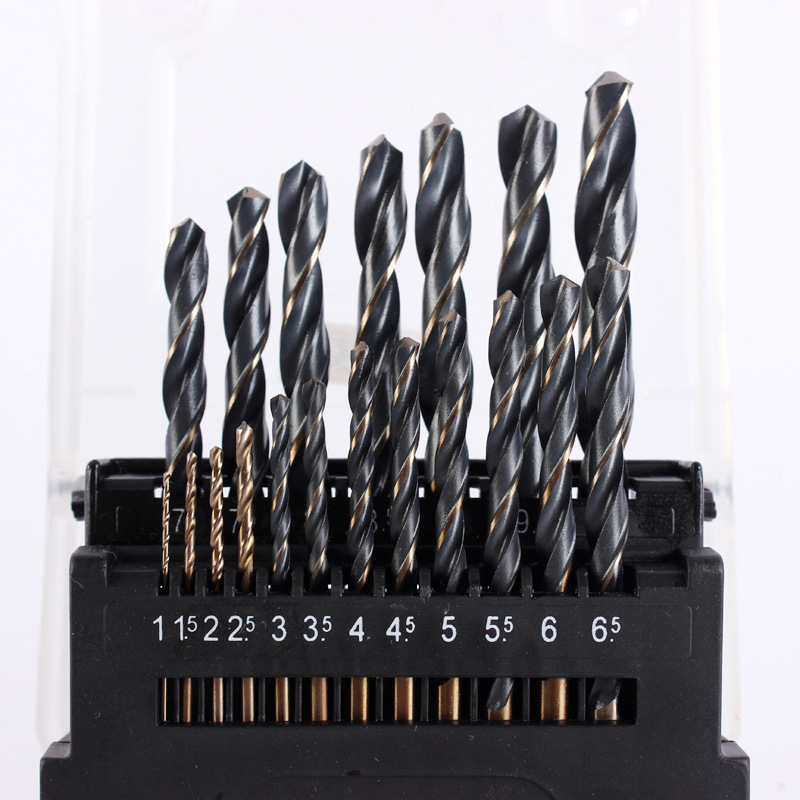

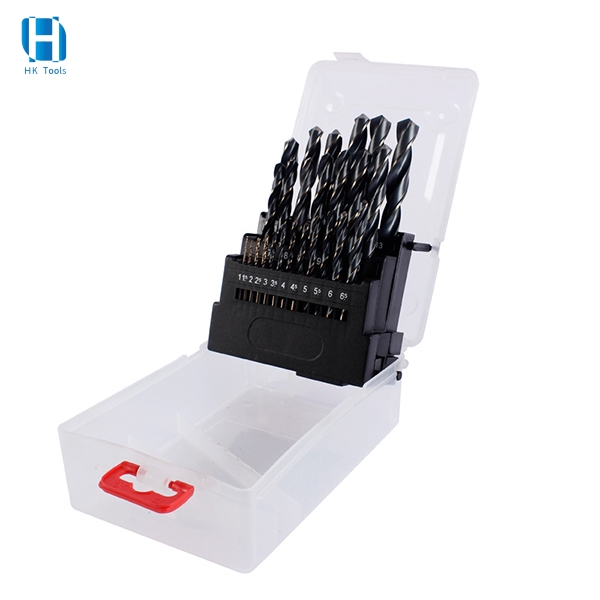

Straight Shank Drill Bits Set (1mm-10mm/19pcs) Drill Bits for Metal

Material

HSS (Cobalt HSS-E is Available)

Process

Fully Ground (Rolled,  Milled are Available)

Standard

DIN338 (Stub DIN1897, Long DIN340, Extra Long DIN1869,Reduced Shank are Available)
Jobber Length (Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long , Silver & Deming 1/2" Reduced Shank are Available)

Size

1-10MM

Point Type

118 Degree Regular Point ,135 Degree Split Point, Pilot Point are Available

Shank Type

Straight Shank (Hex Shank, Tri-Flats Shank, Double R Hex Shank, Reduced Shankare Available)

Helix Angle

Regular Spiral Type N (Slow Spiral Type H, Fast Spiral Type Ware Available)

Web & Flute Type

Regular Web & Flute (Thick Web with Parabolic Flute, Heavy Duty Web with Regular Flute are Available)

Surface Finish

Bright ,Black Oxide, Amber Color, Titanium, Black & Gold, Titanium & Bright are Available

Package

in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box

Features

1.High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
2.Universal 135° point shape for drilling a wide selection of materials.
3.Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.
