TCT Tungsten Carbide Annular Cutter Broach Hole Cutter Magnetic Core Drill Bit With Fein Shank For Metal Wood Drilling Featured Image
  • TCT Tungsten Carbide Annular Cutter Broach Hole Cutter Magnetic Core Drill Bit With Fein Shank For Metal Wood Drilling
  • TCT Tungsten Carbide Annular Cutter Broach Hole Cutter Magnetic Core Drill Bit With Fein Shank For Metal Wood Drilling
  • TCT Tungsten Carbide Annular Cutter Broach Hole Cutter Magnetic Core Drill Bit With Fein Shank For Metal Wood Drilling
  • TCT Tungsten Carbide Annular Cutter Broach Hole Cutter Magnetic Core Drill Bit With Fein Shank For Metal Wood Drilling

TCT Tungsten Carbide Annular Cutter Broach Hole Cutter Magnetic Core Drill Bit With Fein Shank For Metal Wood Drilling

Short Description:

  • 1.Tungsten carbide tipped annular cutters combine extreme hardness and durability with a wide range of possible applications in a convincing product.
  • 2.Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals;
  • 3.Unique tooth geometry, cutting teeth specially grinding by CNC Machine to assure all of teeth in same level,allows for better centering and faster cutting;
  • 4.Thin wall design enables cutters to cut faster and more efficiently by removing less material during drilling;
  • 5.Shorter flute design allows for chips to fall freely from cutter;


Product Detail

Product Tags

Product Information

Product Name HSS and TCT Annular Cutter Magnetic Drill Bit for Magnetic Base Drills Machine Accurate Cutting
Material HSS Annular Cutter: M2AL High Speed Steel
TCT Annular Cutter: Tungsten Carbide Tip + 45# Steel Body

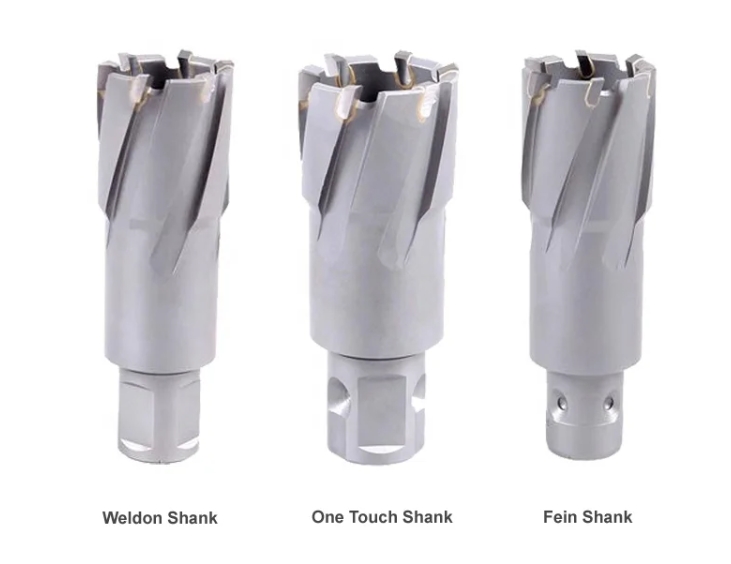

Shank  Weldon Shank   (Universal Shank and Fein Shank are available)
Surface Finish HSS Annular Cutter: Bright, TIN coating and Titanium coating are available
TCT Annular Cutter: Sand Blasted
Package One Piece in One Plastic Tube
Features HSS Annular Cutter:
1.Made of high quality & super tough high speed steel with multi-cut geometry for ply-cutting and lower friction to reach better endurance and less breakage ;
2.Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals;
3.Optimised cutting edge geometry for increased cutting performances and reduced cutting forces;
4.The effective cutting angles are designed for universal use in various sorts of steel;
5.Improved removal of chips thanks to U-shaped recesses. The specific geometry of the recess reduces the thermal load on the HSS core drill as the heat created in cutting is removed with the chips to a very great extent;
6.Reduction of the friction between the HSS core drill and the workpiece thanks to optimised spiral-shaped guide chamfers;
TCT Annular Cutter:
1.Tungsten carbide tipped annular cutters combine extreme hardness and durability with a wide range of possible applications in a convincing product.
2.Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals;
3.Unique tooth geometry, cutting teeth specially grinding by CNC Machine to assure all of teeth in same level,allows for better centering and faster cutting;
4.Thin wall design enables cutters to cut faster and more efficiently by removing less material during drilling;
5.Shorter flute design allows for chips to fall freely from cutter;



Product Size

shank

Diameter

Shank

Cuuting Depth

12-60mm

19.05mm

35mm

50mm

75mm

100mm

61-100mm

31.75mm

1/2”-2-1/3”

3/4”

1-3/8”

2”

3”

4”

2-1/3”-4”

1-1/4”

Custom-tailor would be available against customers’ requirements

Application

                                 Scope of application

Applicable Machines

Scope of application
machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
