Titanium Plated Tri-tip Countersink Drill Reaming Bit Set Woodworking Chamferer

Short Description:

Quickly and accurately drill a smooth hole.Better in centering and no skid . Five-edged chamfer design will fast discharge chips from the hole on both sides automatically.

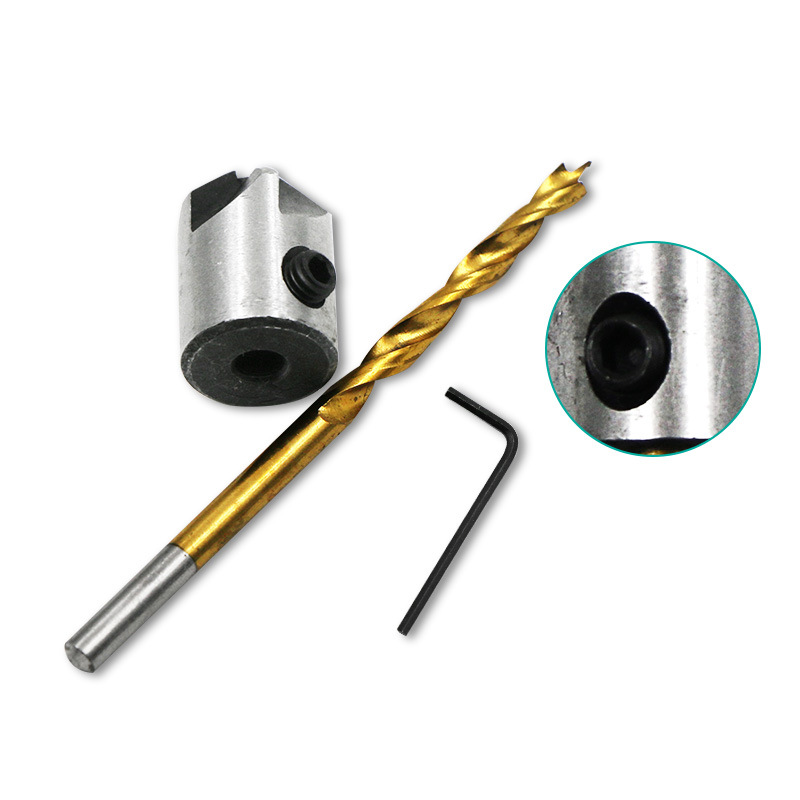

Easy to use the combination of Hex Key to adjust or disassemble the countersink drill bit and the five-flutes chamfering.

Suitable for bench drill, hand drill and conventional electric drill. Perfect for wood, fiberboard, particleboard, plywood, plastic, PVC, rubber etc.


Product Detail

Product Tags

Product Information

Procuct Name Titanium Plated Tri-tip Countersink Drill Reaming Bit Set Woodworking Chamferer
Size 3-10mm
Material High Carbon Steel and 45# Steel
Flute Type 5 Flute
Shank Round Shank
Surface Finish White&Titanium Coated
Package Plastic Box, Wooden Case or Custmize
Feature 1. Material: High speed steel 4241, middle chamfer drill is No. 45 steel.2. Suitable: steel, aluminum & other metals, wood and plastic.

3. Drill Size: 0.12″,0.14″,0.16″,0.20″,0.24″,0.28″,0.31″,0.39″

4. Chamfering device: five blade, which can discharge the sawdust more quickly, drill out smooth and smooth sinks, and insert the screw cap into the surface of the workpiece.

5. Multifunctional- Extend all kinds of screwdriver bits, screwdriver head conversion uses.

6. Chip removal quickly :the wide chip slot and the five-flutes chamfering make the operation process faster to remove the sawdust, and the chamfering is more smooth and unbroken.

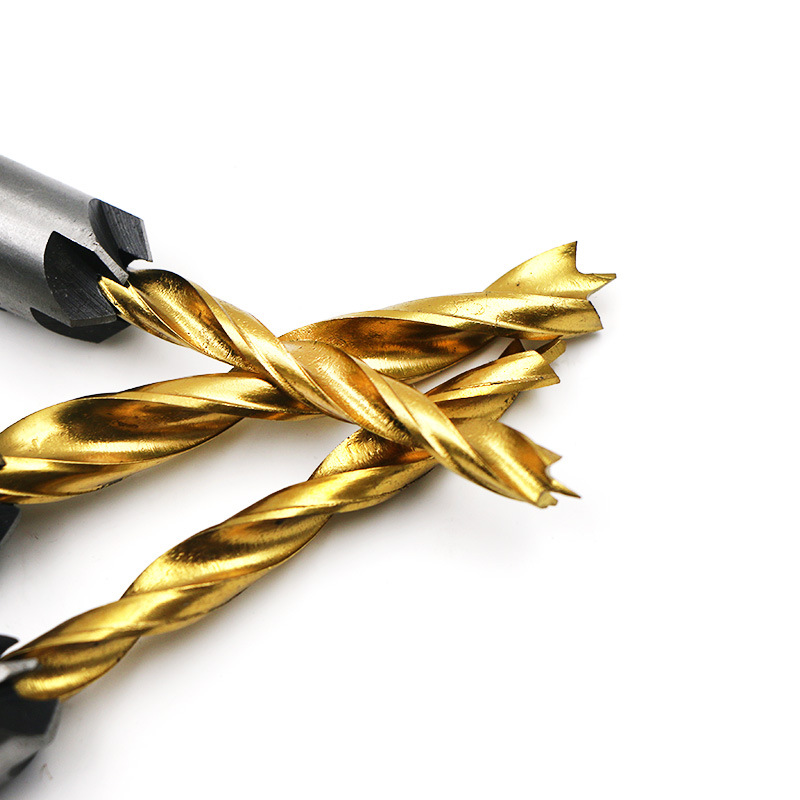

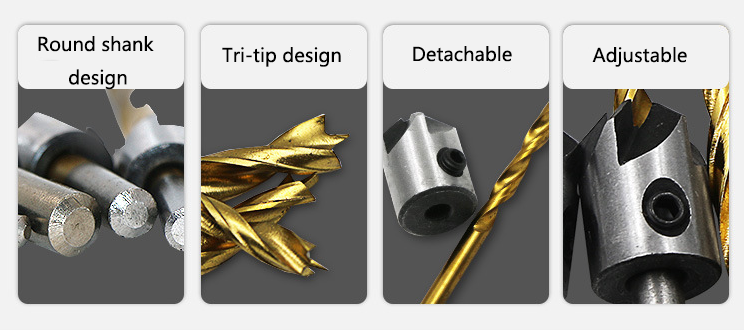

7. Three point drill design: the cutting flutes of the countersink drill bit is made of CNC gear grinding, the three-pointed bit is better in centering and no skid .So the drilling is accurate and fast with high efficiency.

8. Round handle design: handle is smooth without friction with the machine, and it’s suitable for Power Bench or Hand drill driver in the most common size.

9.Removable Adjustable: use a wrench to remove or adjust woodworking and five-bevel chamfering.

detail

Product Size

size

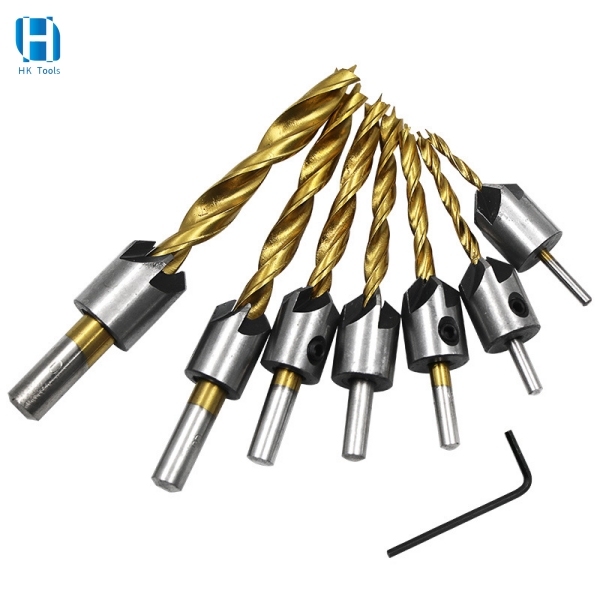

7PCS  Countersink drill bits

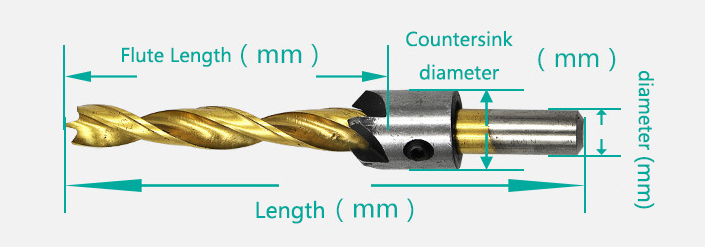

Size

diameter

Flute Length

Countersink diameter

Overall length

3mm

3

34

15

63

4mm

4

45

15

74

5mm

5

53

15

85

6mm

6

62

15

93

7mm

7

68

15

100

8mm

8

72

15

115

10mm

10

82

18

120

Spanners

Length

50

Width

20

Custom-tailor would be available against customers’ requirements

Application

                                                              Scope of application

    Application  Machines

material
machine

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

packing
deliver

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
