Tri-Point Paddle Flat Wood Spade Drill Bit for Wood Clean and Fast Drilling

Short Description:

1.Use high-carbon steel blade, with a special treatment hardness of HRC50-HRC58.

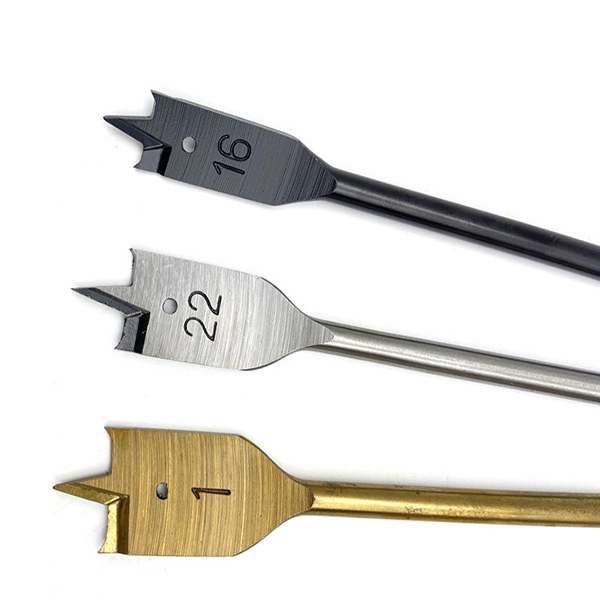

2.Different with other woodwork flat drill, the head through special designed, two edge plus two cutting edge, more accurate positioning, cutting more sharp and fast.

3. Precision ground central point with optimized design for faster cutting performance.

4. Quick-change shank reduces slipping in standard chucks and is compatible with all 1/4″ quick-change chucks and Extension, including impact drills.

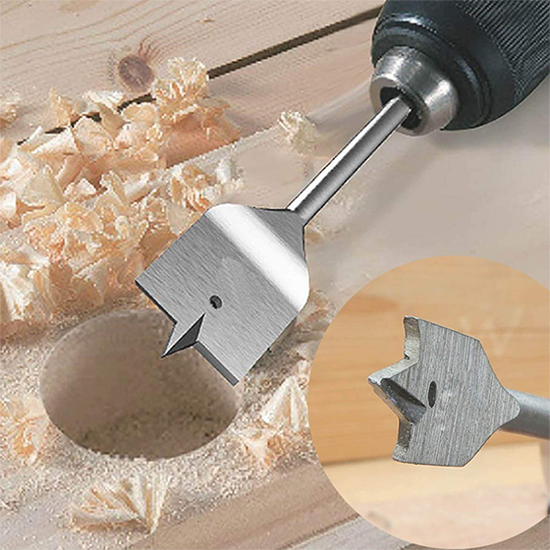

5. Designed to perform fast, clean cuts, will bore all types of timber and are equally efficient when drilling with or against the grain.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	6pcs/Set Wood Spade Drill Bits
Material	High Carbon Steel with Heat Treatment
Tip	Center Point with Cutting Groove (Tri-Point are available)
Shank type	Hex Shank

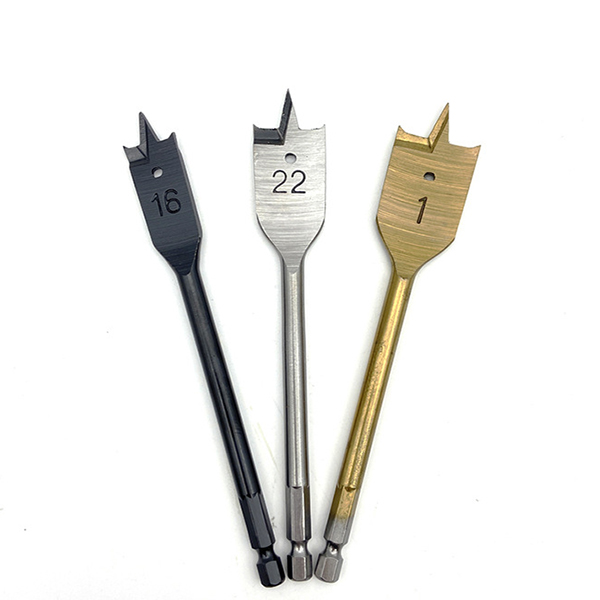

Surface	Bright or Golden (Black Oxided and Titanium Coating are available)
Application	Hardwood, formica, water pine board, press plate, MDF, plastic and etc
Features	1. Full length heat treatment guards against bending bit in heavy-duty applications. 2. Precision ground central point with optimised design for faster cutting performance. 3. Chisel edge design is more positively angled and digs into the wood. 4. The tip is specially designed with two cutting edges, which enables precise positioning and labor saving cutting. 5. Hang hole allows for bit storage and wire pulling. 6. Fast cutting, high positioning accuracy and high hardness after treatment. 7. The Flat Spade Drill Bit can be used in bench drill, dc and ac hand drill.
Package	One Piece in One PVC Pouch or PVC Skin Card or Paper Sandwich or PVC Double Blister Outer package: Standard sea freight carton Or Customized package.

Product Size

Size	Hole Diameter	Blade Length	Overall Length	Shank Diameter	Shank Type
6mm	6mm	32mm	150mm	6.35mm	Hex Shank
8mm	8mm	32mm	150mm	6.35mm	Hex Shank
10mm	10mm	32mm	150mm	6.35mm	Hex Shank
12mm	12mm	35mm	150mm	6.35mm	Hex Shank
13mm	13mm	38mm	150mm	6.35mm	Hex Shank
14mm	14mm	38mm	150mm	6.35mm	Hex Shank
16mm	16mm	38mm	150mm	6.35mm	Hex Shank
18mm	18mm	38mm	150mm	6.35mm	Hex Shank
19mm	19mm	38mm	150mm	6.35mm	Hex Shank
20mm	20mm	38mm	150mm	6.35mm	Hex Shank
22mm	22mm	38mm	150mm	6.35mm	Hex Shank
24mm	24mm	45mm	150mm	6.35mm	Hex Shank
25mm	25mm	45mm	150mm	6.35mm	Hex Shank
30mm	30mm	54mm	150mm	6.35mm	Hex Shank
32mm	32mm	54mm	150mm	6.35mm	Hex Shank
34mm	34mm	54mm	150mm	6.35mm	Hex Shank
35mm	35mm	54mm	150mm	6.35mm	Hex Shank

Custom-tailor would be available against customers’ requirements

Application

Scope of application

Application Machines

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
