Wholesale 5PCS Masonry Drill Bit Set Round Shank For Concrete Wall

Short Description:

Masonry drill bit is used in building industry, installation, boring holes and so on.for drilling concrete,rock,masonry,marble and block etc.

Special designed flute geometry remove dust from the hole quicker for fast drilling and long life.

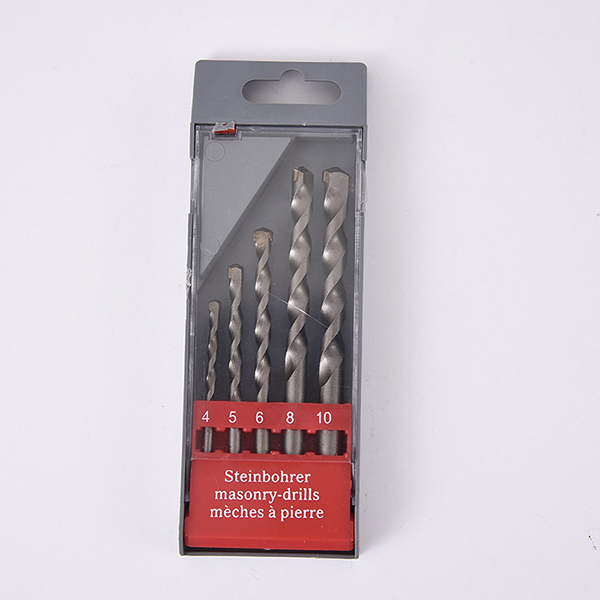

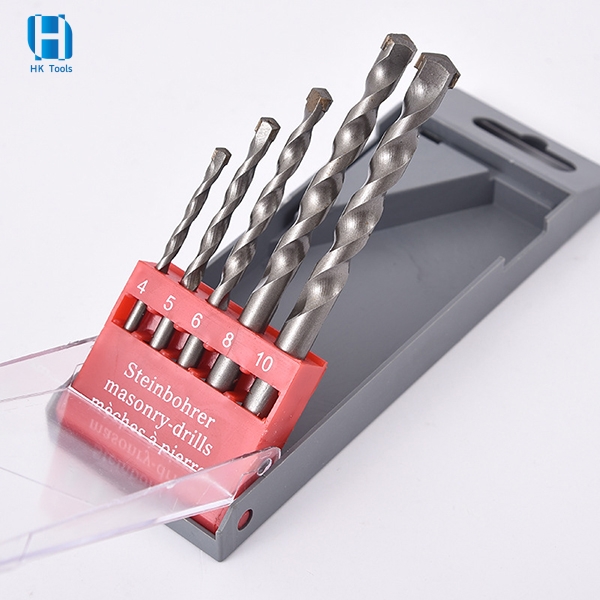

Set Diameter Size: 4mm-5mm-6mm-8mm-10mm.

Send email to us

Product Detail

Product Tags

Product Information

Product description
Product Name	Round Shank Sand Blasted L Flute Carbide Tipped Masonry Drill Bit for Concrete Brick Masonry Drilling
Tip Material	Tungsten Carbide
Body Material	Carbon Steel with Heat Treatment
Process	Milled Flutes and Welded Tip
Flute Type	R Flute (L flute, U flute, S4flute, Fast spiral flute are available)
Shank	Round Shank (Quick change hex shank, Three-Flat shank, Double R hex shank, Tapcon shank, Flexible shank, Extra-long shank are available)
Surface Finish	Sandblasted (Chrome Plated, Zinc plated, Copper Planted, Black & Bright are available )
Package	One Piece in One PVC Pouch Or In One PVC Tube or PVC Double Blister or Skin Card
Feature	1. Carbide-tipped tools feature cutting edges of carbide for wear resistance and a steel shank for toughness.
	2. Spearpoint carbide tip shape design for extreme drilling rough tile, ceramics, porcelain, and glass, etc.
	3. Round shank is designed for use in power drills, drill presses, and boring machines.
	4. Copper braze material gives high heat resistance for reduced tip loss.
	5. Can not be used on hammer mode, for use with rotary drills only.
	6. Best result with lower rpm and good cooling with water, vinegar, and turpentine.

Product Size

Product Size
Diameter	Flute Length	Overall Length	Diameter	Flute Length	Overall Length
mm	mm	mm	Inch	Inch	Inch
3	30	70	1/8″	1-1/2″	3″
4	40	75	5/32″	4″	6″
5	50	85	3/16″	2″	3-1/2″
6	60	100	3/16″	4-1/2″	6″
7	60	100	1/4″	2″	4″
8	80	120	1/4″	4″	6″
9	80	120	1/4″	8″	12″
10	80	120	5/16″	2-1/2″	4-3/4″
11	90	150	5/16″	4″	6″
12	90	150	5/16″	8″	12″
13	90	150	3/8″	4″	6″
14	90	150	3/8″	8″	12″
15	90	150	7/16″	4″	6″
16	90	150	1/2″	4″	6″
17	100	160	1/2″	8″	12″
18	100	160	5/8″	3″	6″
19	100	160	5/8″	8″	12″
20	100	160	3/4″	3″	6″
21	100	160	3/4″	8″	12″
22	100	160	7/8″	3″	6″
23	100	160	7/8″	8″	12″
24	100	160	1″	3″	6″
25	100	160	1″	8″	12″
* Custom-tailor would be available against customers’ requirements

Custom-tailor would be available against customers’ requirements

Application

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
