Wholesale 8PCS Set NO.1-NO.8 PA20 Degrees CNC HSS Module Gear Milling Cutter Involute Gear Cutting Tools

Short Description:

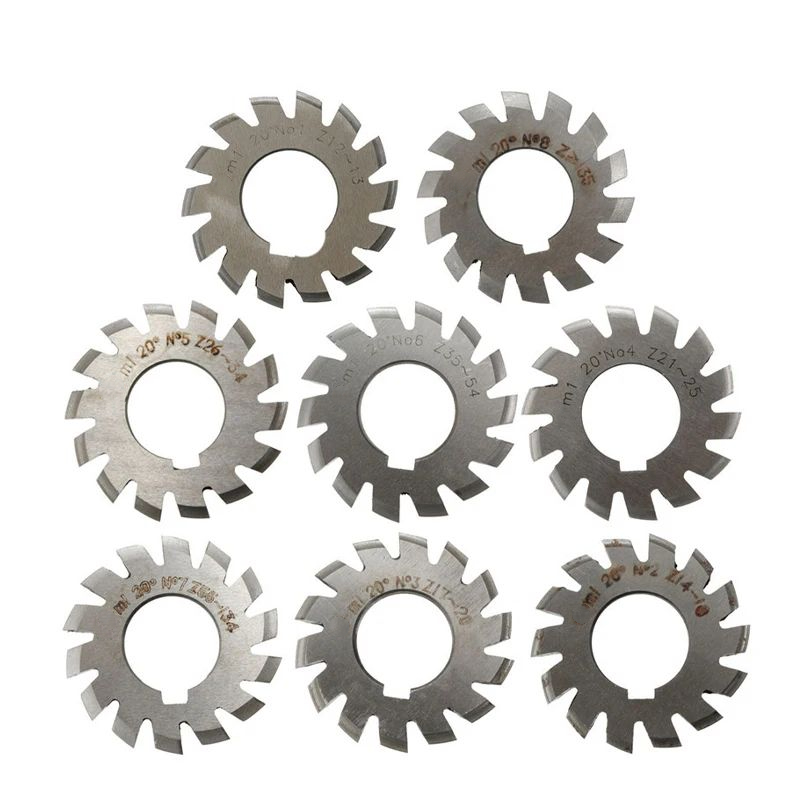

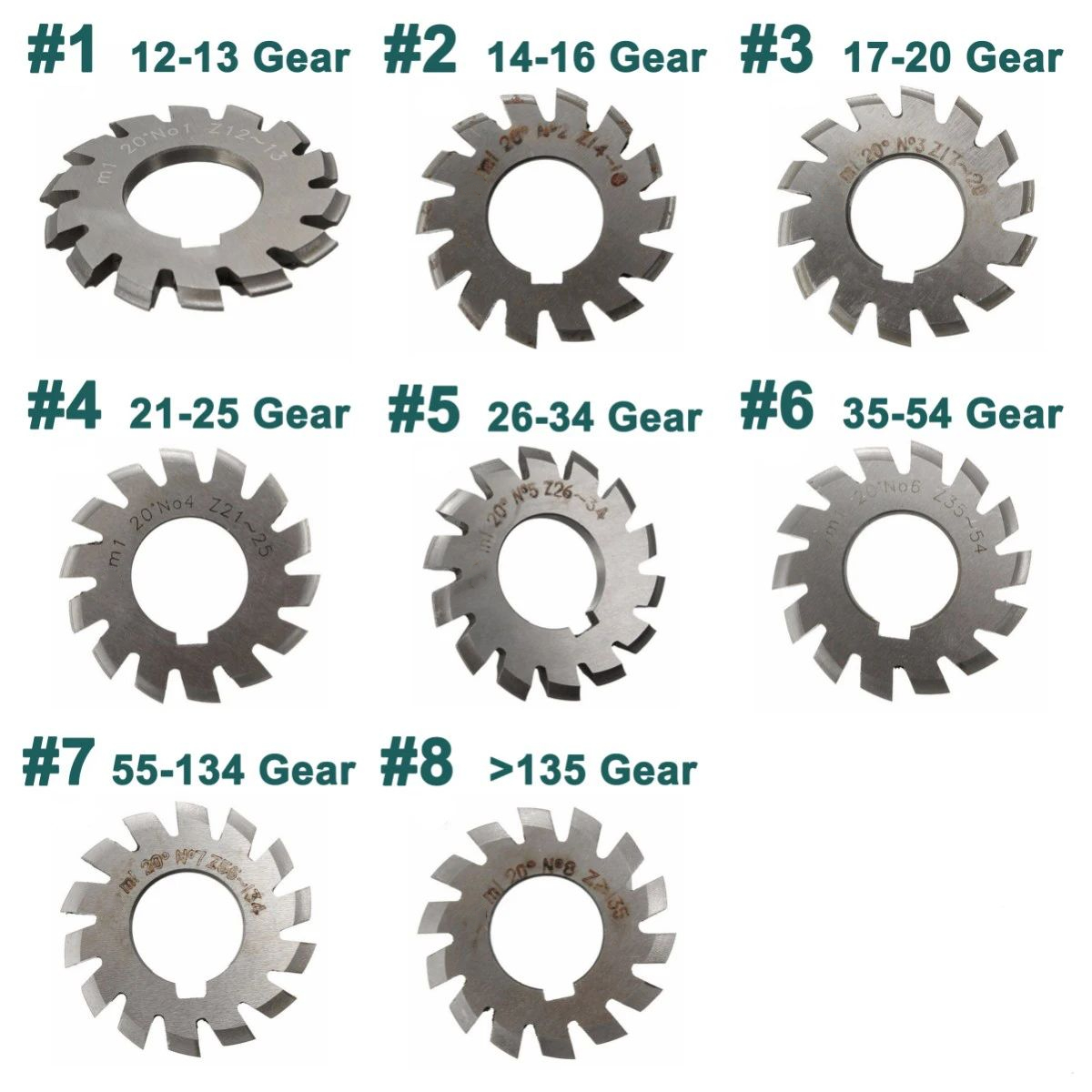

Each set of specifications is divided into 8 pieces. The numbers are 1-8, which respectively represent the range of the number of teeth that can be processed:

1#:12-13teeth

2#:14-16teeth

3#:17-20teeth

4# :21-25teeth

5#:26-34teeth

6#:34-54teeth

7#:55-134teeth

8#:≥135teeth

Send email to us

Product Detail

Product Tags

Product Information

Product Name	NO1-8 Gear Modulus Degrees Disc HSS Gear Milling Cutter
Material	High Speed Steel
Application	Suitable for cast iron and titanium side milling, end-milling and finishing
Features	Gear milling cutters M9 and below are available in a set of 8 pieces. Knife number description: 1#=12~13 teeth, 2#=14~16 teeth, 3#=17~20 teeth, 4#=21~25 teeth, 5#=26~34 teeth, 6#=35~54 Teeth,7#=55~134 teeth, 8#=135~∞ teeth Gear milling cutters M9 and above come in a set of 15 pieces. Knife number description: 1#=12 teeth, 1 1/2#=13 teeth, 2#=14 teeth, 2 1/2#=15~16 teeth, 3#=17~18 teeth, 3 1/2#=19~ 20 teeth,4#=21~22 teeth, 4 1/2#=23~25 teeth, 5#=26~29 teeth, 5 1/2#=30~34 teeth, 6=35~41 teeth, 6 1/2# =42~54 teeth, 7#=55~79 teeth, 7 1/2#=80~134 teeth, 8#=135~∞ teeth

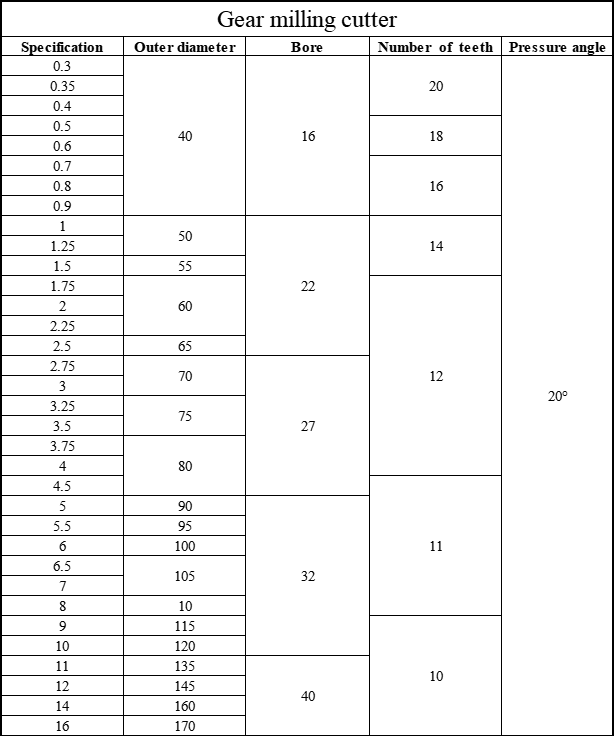

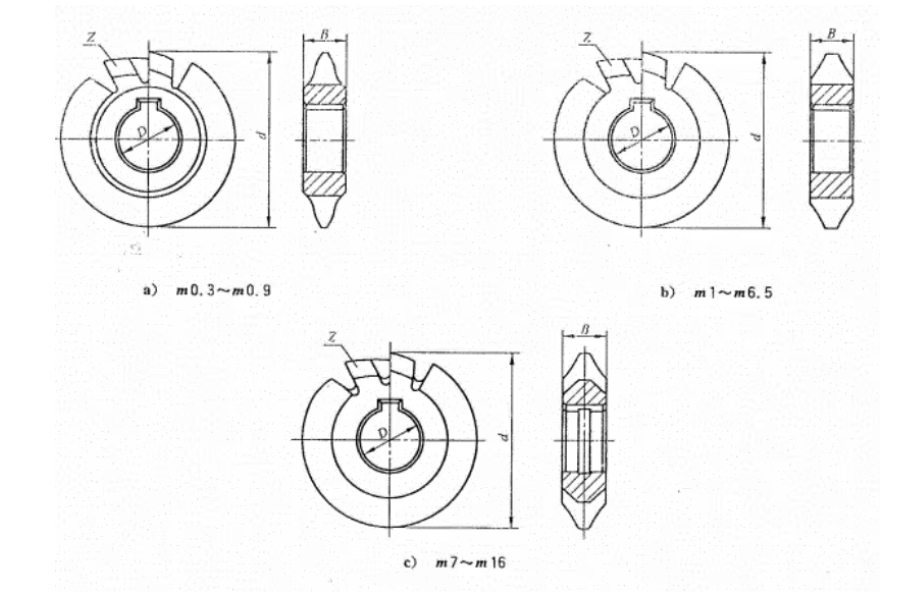

Product Size

Custom-tailor would be available against customers’ requirements

Application

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
