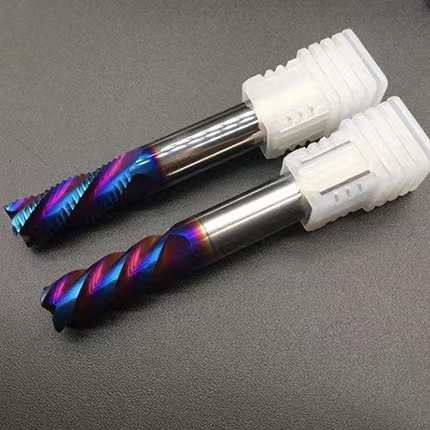

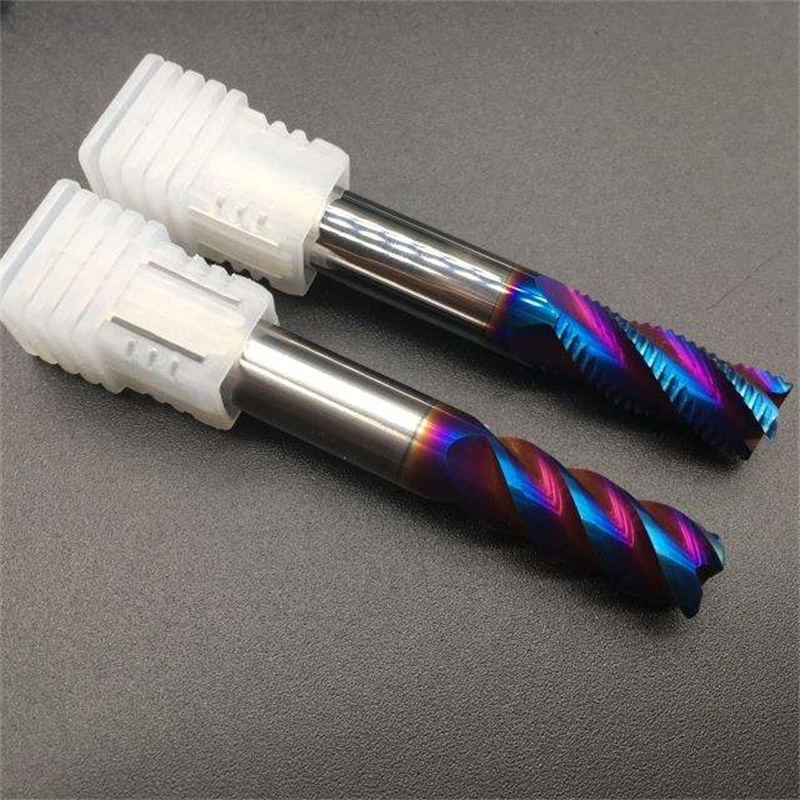

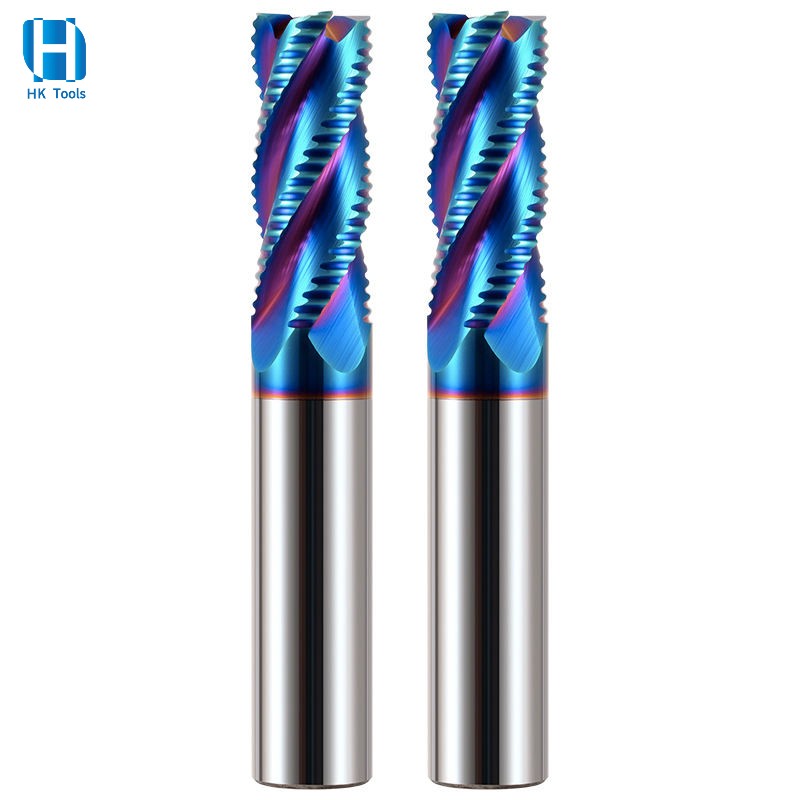

Wholesale HRC65 Carbide 4 Flute Roughing End Mill l CNC Rough Milling Cutter for Wood Steel

Short Description:

Application: suitable for processing stainless steel, cast iron, copper,carbon steel etc.

Best material: we use the import material, AF,SANDVIK,KENNA,CB,etc.

Quality: all our manufactured parts are inspected by advanced zoller mearsurement.

Flexbility: non-standard sizes are accepted.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Wholesale HRC65 Carbide 4 Flute Roughing End Mill l CNC Rough Milling Cutter for wood Steel
Material	Carbide, 100% New Material
Process	Milled
Flute Type	4Flutes
Size	Shank diameter: 4-20 mm, Overall length: 50-100mm
Surface Finish	Bright Finish (AlTiN, Tin, are Available)
OEM & ODM Accepted	Any design according to your drawings or samples
Package	One Piece in One Plastic Calm Shell
Features	1.Coating: TiSiN, containing silicon, has a high surface hardness and high thermal resistance. 2.Double-edged belt design, effectively improve the rigidity of the belt and the surface finish of the work-piece; 3.Cutting edge over the centre, effectively reduce cutting resistance; 4.Large-capacity chip removal groove, convenient and smooth chip removal, improve machining efficiency; 5.Two-edged design, widely used in the groove, hole processing. 6.Suitable for carbon steel, alloy steel, cast iron and hardened steel etc.
Machining center	CNC machining/NC machining/CNC engraving and milling machine/High speed machine/Wooding work cutters
Application	Suitable for high hardness mold steel, alloy steel and under HRC65 steel

Product Size

Order No.	Flute dia (d)mm	Cutting length ( l )mm	Shank dia (D)mm	Overall length(L)mm
1.0×2.5×4D×50L	1.0	2.5	4	50
1.5×4×4D×50L	1.5	4	4	50
2.0×5×4D×50L	2.0	5	4	50
2.5×7×4D×50L	2.5	7	4	50
3.0×8×4D×50L	3.0	8	4	50
3.5×10×4D×50L	3.5	10	4	50
4.0×10×4D×50L	4.0	10	4	50
4.5×11×6D×50L	4.5	11	6	50
5.0×13×6D×50L	5.0	13	6	50
5.5×13×6D×50L	5.5	13	6	50
6.0×15×6D×50L	6.0	15	6	50
6.5×15×8D×60L	6.5	15	8	60
7.0×17×8D×60L	7.0	17	8	60
7.5×17×8D×60L	7.5	17	8	60
8.0×20×8D×60L	8.0	20	8	60
8.5×25×10D×75L	8.5	25	10	75
9.0×25×10D×75L	9.0	25	10	75
9.5×25×10D×75L	9.5	25	10	75
10.0×25×12D×75L	10.0	25	12	75
10.5×25×12D×75L	10.5	25	12	75
11.0×28×12D×75L	11.0	28	12	75
11.5×28×12D×75L	11.5	28	12	75
12.0×30×12D×75L	12.0	30	12	75
13.0×33×16D×100L	13.0	33	16	100
14.0×40×16D×100L	14.0	40	16	100
15.0×40×16D×100L	15.0	40	16	100
16.0×40×16D×100L	16.0	40	16	100
17.0×40×20D×100L	17.0	40	20	100
18.0×40×20D×100L	18.0	40	20	100
19.0×40×20D×100L	19.0	40	20	100
20.0×40×20D×100L	20.0	40	20	100
25.0×40×25D×100L	25.0	40	25	100

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

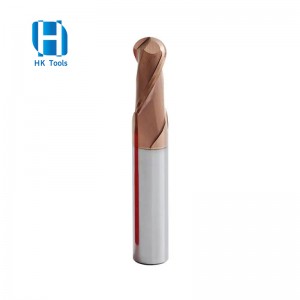

Previous: New Products HRC65 Carbide Standard Length 2F Ball Nose End Mill
