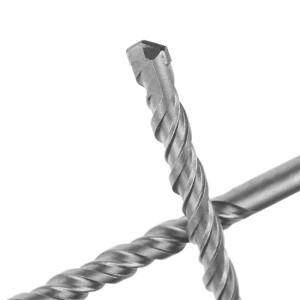

YG8 SDS Plus Hammer Drill Bit Cross Tips 4 Flute For Concrete Masonry

Short Description:

Standard shank design, passes through concrete in seconds.

Deep chip evacuation trough, convenient and quick.

High temperature quenching, high hardness, long service life.

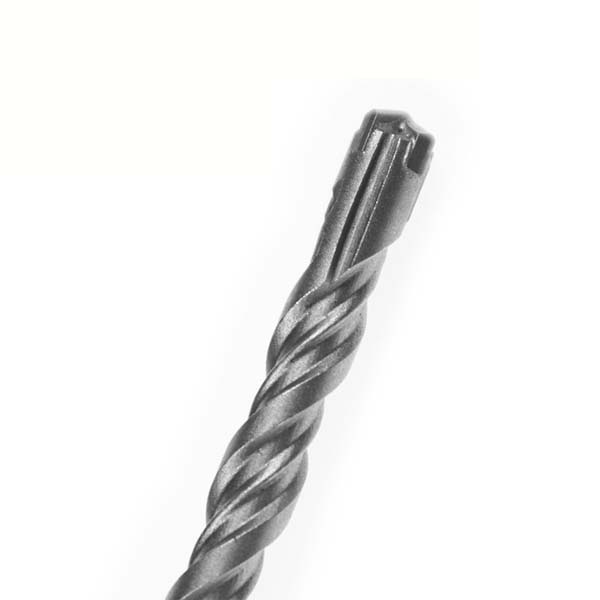

High carbide tool head, strong cutting edge and wear resistance, solid welding.

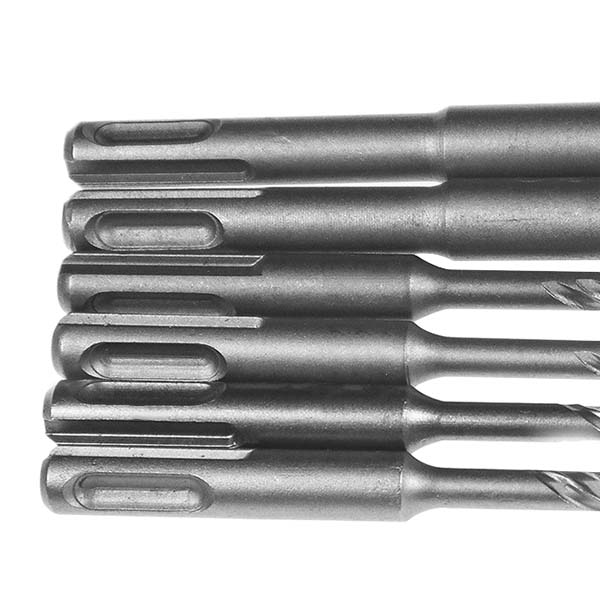

Round handle with 2 pits and 2 grooves, suitable for different types of electric hammer interface

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Carbide Single Tip SDS Plus Hammer Drill Bit for Concrete
Body Material	40Cr Steel with Heat Treatment
Tip Material	Tungsten Carbide
Process	Milled Flutes and Welded Tip
Tip Type	Single Tip
Flute Type	S4 Flute,L Flute, U Flute
Shank	SDS Plus Shank
Surface Finish	Sand Blasted

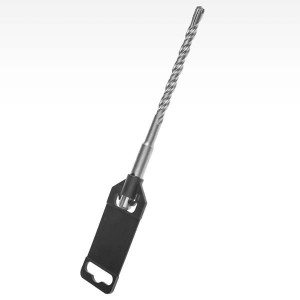

Package	in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box
Features	1.Premium 40Cr steel with heat treatment improves core strength for maximum durability and extended life. 2.Hardened, premium carbide insert tip is strong and stays sharp longer for finer material break up and easier drilling.increases strength and durability. 3.Copper braze material gives high heat resistance for reduced tip loss,Carbide tip securely embedded in the steel body. 4.fold spiral flute (S4) for rapid drilling dust removal. With even less vibration and more precise guiding, the stability and service life of the drill bit are increased.

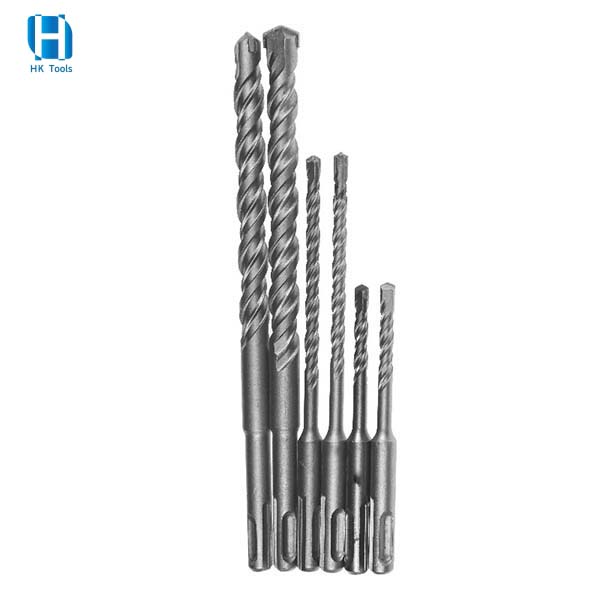

Product Size

SIZE(MM)	SIZE(MM)	SIZE(MM)	SIZE(MM)
4*110	14*260	10*450	25*800
5*110	16*260	12*450	26*800
6*110	18*260	14*450	28*800
6.5*110	20*260	16*450	30*800
7*110	22*260	18*450	32*800
8*110	24*260	19*450	35*800
9*110	25*260	20*450	40*800
10*110	26*260	22*450	10*1000
11*110	28*260	24*450	12*1000
12*110	30*260	25*450	14*1000
13*110	32*260	26*450	16*1000
4*160	6*310	28*450	18*1000
5*160	8*310	30*450	20*1000
6*160	10*310	32*450	22*1000
6.5*160	12*310	35*450	24*1000
7*160	14*310	40*450	25*1000
8*160	16*310	8*500	26*1000
9*160	18*310	10*500	28*1000
10*160	20*310	12*500	30*1000
11*160	22*310	14*500	32*1000
12*160	24*310	16*500	35*1000
13*160	25*310	18*500	40*1000
14*160	26*310	20*500
16*160	28*310	22*500
18*160	30*310	24*500
20*160	32*310	25*500
22*160	6*350	26*500
25*160	8*350	28*500
5*210	10*350	30*500
5.5*210	12*350	32*500
6*210	14*350	34*500
6.5*210	16*350	35*500
7*210	18*350	8*600
8*210	20*350	10*600
9*210	22*350	12*600
10*210	24*350	14*600
12*210	25*350	16*600
13*210	26*350	18*600
14*210	28*350	20*600
16*210	30*350	22*600
18*210	32*350	24*600
20*210	8*410	25*600
22*210	10*410	26*600
24*210	12*410	28*600
25*210	14*410	30*600
26*210	16*410	32*600
28*210	18*410	35*600
6*260	20*410	40*600
6.5*260	22*410	10*800
7*260	24*410	12*800
8*260	25*410	14*800
9*260	26*410	16*800
10*260	28*410	18*800
11*260	30*410	20*800
12*260	32*410	22*800
13*260	8*450	24*800

Custom-tailor would be available against customers’ requirements

Application

Scope of application

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.

FAQ

Q: Is OEM available?
A: Yes, OEM and customization are available. Graved logo marker,Laser logo marker,, customized packing. Printed Inner box, Carton box.

Q: Are samples available?
A: Yes, you can ask some samples for testing after confirming our prices, but please pay the sample and freight fee, the sample fee will be returned to you after you making official order.

Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.

Q: What's your delivery time?
A: Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.
