YG8C material Masonry drill bit for concrete and granite drilling

Short Description:

Drill bits for drilling masonry, (brick and concrete)can be identified and distinguished from other drill bits by the blunt wide blade on the tip.With the special cutting edge geometry, the diamond ground cutting zone and the carbide plate the is suitable for nearly all materials to be drilled. The very hard Tungsten Titanium carbide tip stands for an extremely wear resistant drill bit.One of the best is the HAOKE masonry drill bits.This ingenious design enables you to drill masonry with a conventional drill – not a hammer drill.

Send email to us

Product Detail

Product Tags

Product Information

Product Name	Masonry drill bit
Material	45#carbon steel YG8C,DIN8039
Process	Milled
Suitable	Break/Concrete/Granite
Shank type	Shank Design: SDS Plus Shank ,MAX shank ,Round Shank The shank of the masonry drill bit is usually designed to fit into a hammer drill or rotary hammer, allowing for faster and more accurate drilling.
Size	Diameter: 4-40mm, Total length: 70-1200mm Working length:40-1140mm
Brazing Temp	High-temperature brazing at about 1,120º
Tips	Tungsten Carbide Tip
Package	in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box
Features	1.Wildly used :The masonry drill bit is suitable for almost all materials to be drilled (such as ,masonry ,concrete,stone,brick,hard wood,steel,and soon )due to the special cutting edge geometry and the diamond-ground cutting surfaces of the carbide tip 2.Durability: Masonry drill bits are designed to be durable and long-lasting, even when used on tough materials like concrete and brick 3.Fit machine :Fits directly into all hammer drilling machines with SDS-plus and HILTI TE-C drive
Payment terms	T/T,L/C,D/A,D/P,Paypal,Western Union,for different circumstances.

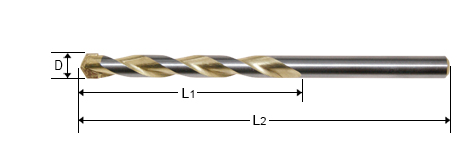

Product Size

Diameter	Flute Length	Overall Length	Diameters	Flute Length	Overall Length
mm	mm	mm	inch	inch	inch
4.0-10.0	50	110	5/32"-3/8"	2"	4"
4.0-16.0	100	160	5/32"-5/8"	4"	6"
5.0-26.0	150	210	3/16"-1"	6"	8"
6.0-26.0	200	260	1/4"-1"	8"	10"
6.0-26.0	250	310	1/4"-1"	10"	12"
6.0-26.0	290	350	1/4"-1"	12"	14"
6.0-26.0	350	410	1/4"-1"	10"	12"
8.0-30.0	390	450	5/16"-1-1/8"	12"	14"
8.0-30.0	540	600	5/16"-1-1/8"	14"	16"
10.0-30.0	740	800	3/8"-1-1/8"	16"	18"
10.0-30.0	940	1000	3/8"-1-1/8"	22"	24"
10.0-40.0	1140	1200	3/8"-1-3/4"	24"	26"
The Sizes are available,Contact Us to Learn More.

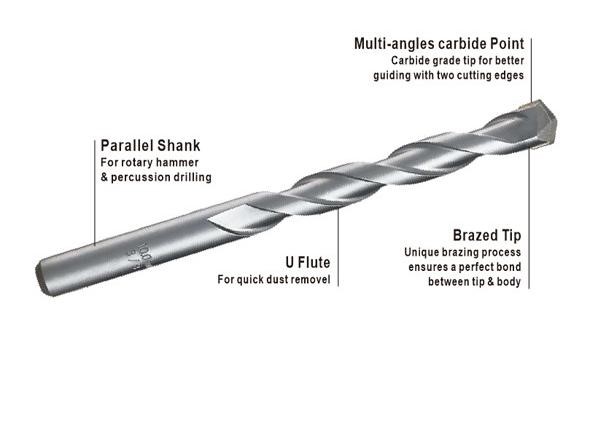

Product Details

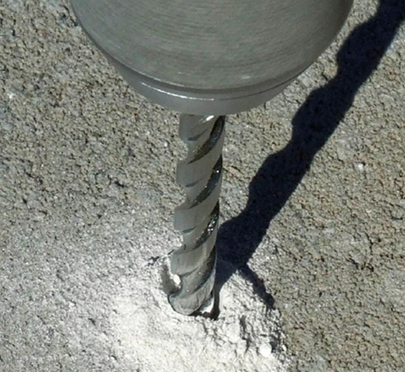

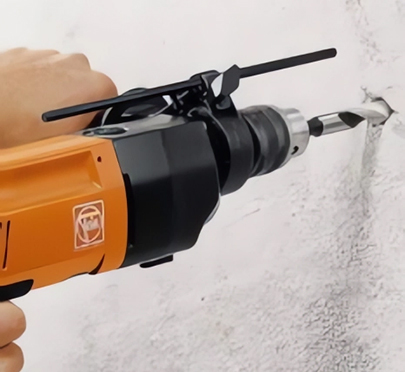

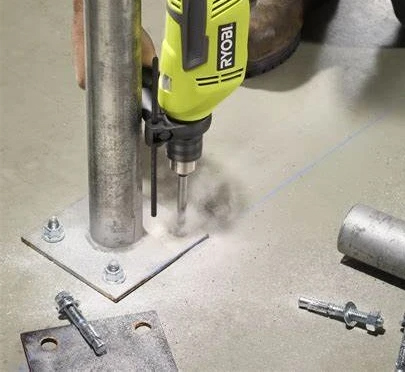

Product Applications Scene

The masonry drill bit is suitable for almost all materials to be drilled ,such as, masonry, concrete,stone,brick,granite, hard wood, steel, and soon.

Shipping and Packing

Shipping: Express delivery, air shipping, sea shipping are available for your request. Usual delivery time is 5-10days after receiving the advance payment; For the customized product, 15-30 days after receiving the advance payment.

Packing: We also supply single pvc bag,paper bag,colored plastic square box,transparent plastic box,skin card,sandwich and so on packages with size, logo,brand and other information.
